Customized HD-SDI Slip Ring For 1080P HD-SDI / Hd-Mi Capsule Slip Ring
Description of O032-24 HD-SDI Slip Ring
SENRING O032-24 series HD video slip ring,can transmit 1 channel HD video signal ,DC~3GHz coaxial HD signal or 12 circuits 2A signal when 360° roating,rated speed:100RPM.SHD-24 series HD slip ring,OD 32.8mm, length 47,MMCX,SMA coaxial connector optional.
Features of O032-24 HD-SDI Slip Ring
1. Support DC~3GHz,can stable transmit 1080P HD vedio signal;
2. Solid,with flange;
3. Can transmit 1 channel HD video slip ring +12 circuits 2A power/signal when 360° rotating;
4. OD:32.8mm,length:47mm;
5. Can be combined to transmit HF signal, control signal, video signal and other signals;
6. Excellent electrical transmission and rotation performance;
7. Typical Application:HD security monitoring, photographic camera, HD camera and other fields.
Technical Specification of o032-24 series slip ring
| Frequency rate | DC-3GHz |
| Insertion loss fluctuation | +/-0.05dB |
| Specification | RG405 |
| VSWR | ≤1.3 |
| impedance | 50Ω |
| Mechanical Data |
| spec | data |
| working life | 10millions for ref(depends on working conditions) |
| Rotating speed | 250RPM continously |
| working temp. | -30℃∼80℃ |
| work humidity | 0∼85% RH |
| contact material | refer to slip ring grade table |
| housing material | aluminum alloy |
| torque | 0.1N.m+(0.03N.m/6 circuits) |
| Insertion loss | 0.65dB/1GHz Max |
| return loss | -18 dB/1GHz Max |
| Max speed | 50RPM |
| VSWR fluctuation | +/-0.05 |
| Style | BNC/F (Options) |
| Electrical Data |
| spec | data |
| voltage range | 0∼440VAC/VDC |
| insulation resistance | ≥1000MΩ/500VDC |
| lead wire spec. | AWG26# Silver-plated teflon |
| lead wire length | standard 250mm(can be customized) |
| Dielectric Strength | 500VAC@50Hz,60s |
| Electrical noise | < 0.01Ω |
| Electrical Noise | < 10mΩ |
| CE certificate | Yes |
| material | RoHS compliant |

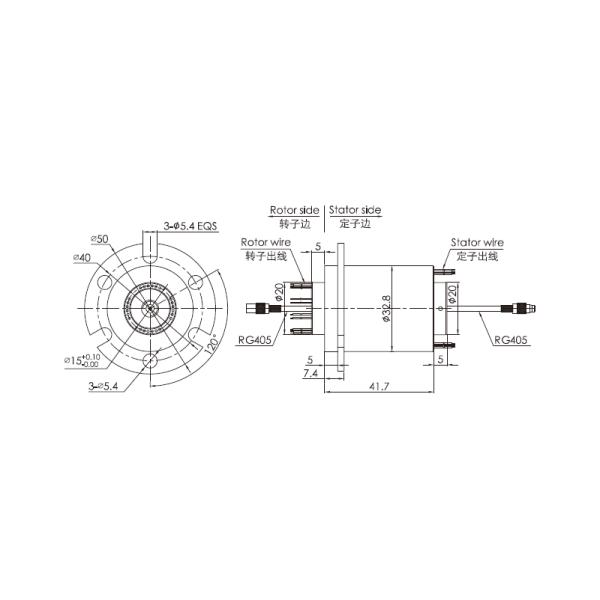

Drawing
FAQ:
1. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
2. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with the perfect solution for your needs.
